 To view in detail click the following |
|
|
Technical Specification :
Suitable for inline installation with flanged or screwed connection with several options of materials for wetted parts. |
|
Technical Specification :
Suitable for online installation with flanged or screw connection with several options of materials for wetted parts.
|
|
|
Technical Specification :
Suitable for metering floe rates in 50 NB & above pipeline. Available in a
variety of materials, carrier rings, impulse piping and rotameter as
flow indicator
|
|
Technical Specification :
Suitable for purging or low flowrate measuring. The standard mounting is ¼"
BSP rear, although several arrangement of flanged or hose pipe connections
are offered on request. |
|
|
Technical Specification :
"U" Tube type Primary standard Manometer used for precision measurement
of pressure, vacuum, differential pressure, and flow measurement in plants
and labs where certain accuracy is required
|
|
Technical Specification :
Suitable for metering of translucent / opaque fluids under high
operating pressure and temperature. |
|
|
• Acrylic Body Inclined Manometer
Technical Specification :
CVG solid acrylic body portable manometers are fabricated from 1 inch.
Thick acrylic plastic solid block, vertially unbreakable stable and free of
distortion. PVC plastic engraved scale, zero adjusting knob, level bottom
and panel mounting holes provide with manometer. |
|
• "U" Tube Manometer [Acrylic Body]
Technical Specification :
"U" Tube type Primary standard Manometer used for precision measurement
of pressure, vacuum, differential pressure, and flow measurement in plants
and labs where certain accuracy is required. |
|
|
• Tubular Glass Level Indicator
Technical Specification :
Tubular Level gauge for visual liquid level observation is very common in
process industry. It is a simple and reliable device for direct reading in
atmospheric or pressurized tank applications. |
|
• Single Limb Manometer
Technical Specification :
Single Limb well type Direct Reading Manometer for the precision measurement of pressure, vacuum different pressure flow and liquid level measurement.
|
|
|
• Top Mounted Magnetic Level Indicator
Technical Specification :
Simple principles of mechanics and magnetism harnessed to offer an
absolutely safe, reliable and trustworthy level indicator for dangerous and
toxic liquids under high pressure and Temperatures |
|
• Side Mounted Magnetic Level Indicator
Technical Specification :
Simple magnetic principle used to get unique, absolutely safe and most
reliable level indicator for dangerous liquids even under high pressures.
|
|
|
• Side Mounted Magnetic Level Switch
Technical Specification :
Float mounted at one end of rigid rod moves with change in level, magnetic
capsule at other end of rod moves accordingly within fixed limits Switches
contacts across the face changes accordingly. |
|
• Sight Flow Indicators ...
Available in full view, double window, single window with flapper, rotary wheel and in drip tube design, suitable for different type of fluids. |
|
|
•
Technical Specification :
Dial Size : 100mm / 150mm / 250mm.
Dial : Tin / Aluminum with black marking on white dial.
Range : -38~600°C
Accuracy : +- 1% Full Scale.
Case & Bezel : Stainless Steel or Drawn Steel; Stove enamelled black color.
|
|
• Float Operated Liquid Level Switch
Technical Specification :
CVG Magnetic Float Operated Pivoted Switch is an economical, maintenance free and reliable device used for high, low or intermediate level switching point level switching. These switches come in various non-magnetic materials & construction styles to suit broad range of media / applications. It is designed to provide high repeatability and to minimize effects of shock, Vibration & pressure. |
|
|
• Bi-Metallic Gauge ...
Technical Specification :
Dial Size : 100mm
Dial : Tin / Aluminum with black marking on white dial.
Range : -38~400° C
Accuracy : +-2% FSD
Case & Bezel : Stainless Steel or Drawn Steel; Stove enamelled black color. |
|
• Capillary Gauge ...
Technical Specification :
Dial Size : 100mm / 150mml / 250mm
Dial : Tin/Aluminum with black marking on white dial.
Range : -38~600°C
Accuracy : +- 1% Full Scale.
Case & Bezel : Stainless Steel or Drawn Steel; Stove enamelled black color. |
|
 |

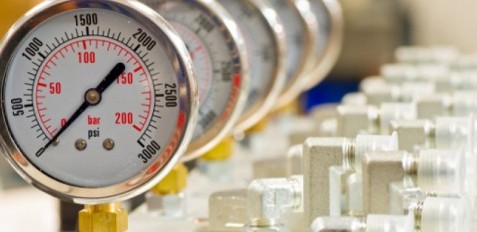

• Pressure Gauges ...
Available in full view, double window, single window with flapper, rotary wheel and in drip tube design, suitable for different type of fluids. |
|
|
|
